THE MARINE GOLD FUEL HUB AND ENERGY ZONE

PROJECT BACKGROUND

THE MARINE GOLD FUEL HUB, AND ENERGY ZONE is a visionary project concept of 3K SYNERGY LIMITED. For MARINE GOLD OIL REFINERY LTD. The project is designed to become an African regional market place for essential Refined Fuels and Gas, towards providing a lasting Fuel sustainability and a dependable Hi-tech integrated Fuel Support solutions. The Fuel Hub will put an end to the wasteful trillions of dollars currently spent yearly on fuel imports by the Federal Government, and to huge sums of money wasted by Oil and Gas Upstream and Downstream operators on Fuel Logistics and Storage for their operations, thereby creating a huge savings and increased profitability for all the Oil and Gas Exploration and Production operators in particular, and the the Upstream and Downstream operators, the Federal Government and the Nigerian populace in general.

PROJECT SUMMARY

Project Owner MARINE GOLD REFINERIES LTD
Project Description Development of 5 - 25,000 BPD Modular Refinery
Project Developers/TECHNICAL TEAM FREEPORT MANAGEMENT SERVICES LLC. HOUSTON TEXAS USA & 3K SYNERGY LTD ACC SERVICES LTD
Estimated Cost $ 1,500,000,000.00 USD - Estimated Cost
PROJECT KEY FACULTIES Cost 5 - 25,000 BPD Modular Refinery Units 3,000,000 MT Tank Farm 15 Station Export Jetty - Loading/Offloading Gas Processing Plant Mega Fueling Stations - 5 States Nationwide Inland Barges and Tankers for Product Transport

THE MGOLDFHEZ MAIN FACILITIES

5 Units Of 25,000 bpd Modular Refineries
3 - 5,000 BPD Floating Refineries - 300,000 MT Tank Farm
100 MSCFD Natural Gas Processing Plant
Petrochemical Processing Plants
30 Station Export Jetty
6 - Coastal Oil & Compressed Gas Tankers
5 - Branded Mega Fuel Stations (To be built in 12 major cities nationwide)
150 - 33,000 Litre Road Tankers (varying capacities and products)
300 MW Solar and Gas Fired Turbine Power Plant
Pipeline to JETTY
Host Community Road Network.
Supply Facilities (Water, Electricity, Gas etc.
2 - High Rise Admin Building (w/Canteen)
2 - Residential Tower Buildings (Penthouse Top Management Office Facilities)

PROJECT DEVELOPMENT (PHASE 1)

DEVELOPMENT OF 1 - 25,000 BPD REFINERY / FACILITIES

1 - 25,0000 BPD Modular Refinery
Freight, Transportation, Logistics
100,000 MT Tank Farm (CONSTRUCTION)
Export Jetty (15 Stations - Loading / Offloading
Purchase of 4 Barges and 4 Shuttle Vessels, Engineering,
DPR Supervision Oversight, Project Management
Site Preparation / Civil Engineering
Pipeline Construction / Commissioning
Office Building Construction
5 Mega Fuelling Stations (5 States Nationwide)
200 Unit Affordable Housing (Low), 100 Units (Mid Level) 50 Units Luxury Housing w/Canteen, Auditorium and Road Networks.

PROJECT DEVELOPMENT (PHASE 2)

2 - 25,0000 BPD Modular Refinery
Freight, Transportation and Logistics
100,000 MT Tank Farm
2 Inland Barges / 2 Shuttle Vessels, Engineering
Project Management / Supervision / Oversight
Site Preparation and Civil Engineering, ctd.
Pipeline Construction, ctd.
Roads and Facility Construction, ctd.

PROJECT DEVELOPMENT (PHASE 3)

$ 250,000,000 Estimated Scope of Work

2 - 25,000 BPD Modular Refineries
Freight, Transportation and Logistics
100,000 MT Tank Farm
2 - Inland Barges and 2 - Shuttle Vessels
Project Management / Supervision / Oversight
Pipeline Construction, ctd.
Roads and Facility Construction, ctd.

PROJECT DEVELOPMENT (PHASE 4)

CONSTRUCTION OF PETROCHEMICAL PLANT

$ 150,000,000 Estimated Scope of Work

1 - PETROCHEMICAL PLANT (Gas Processing)
Freight, Transportation, and Logistics
100,000 MT Tank Farm, ctd.
2 - Inland Barges and 2 Shuttle Vessels
Project Management / Supervision / Oversight
Pipeline Construction, ctd.
Road and Facility Construction, ctd.

PROJECT HOST COMMUNITY SOCIO ECONOMIC IMPACT

The MGOLD- FHEZ Project is designed to spin off multiple socio economic impacts in the Badagry Region and Lagos State The "Project" will encourage a stronger partnership between the. Oil Companies, The Government and Oil Host Communities by boosting a brighter sense of inclusion and belonging in the Oil Sector. This will in turn make the Host Community protective of the Government and IOCs Oil Assets and indeed other Oil & Gas assets of the Country as a whole as they continue to develop a higher level of sense of self-worth.

The projected business opportunities presented by the MGOLD-FHEZ will ultimately impact the overall economic landscape of Nigeria in a great and positive way and perhaps become the long sought after future life-line for achieving the much desired "Nigerian Rapid Industrialization" for its sustainable global competitiveness. Indeed, the MGOLD-FHEZ is no doubt a singular master-stroke project that will change the national economic paradigm by evolving a new age Nigerian and African Oil Trading Market exchange for Nigerian Refined Petroleum Products, thereby economically reinstating Nigeria into her rightful position, as not just one of the highest producers of Crude oil, but also as a net exporter of Refined Fuels.

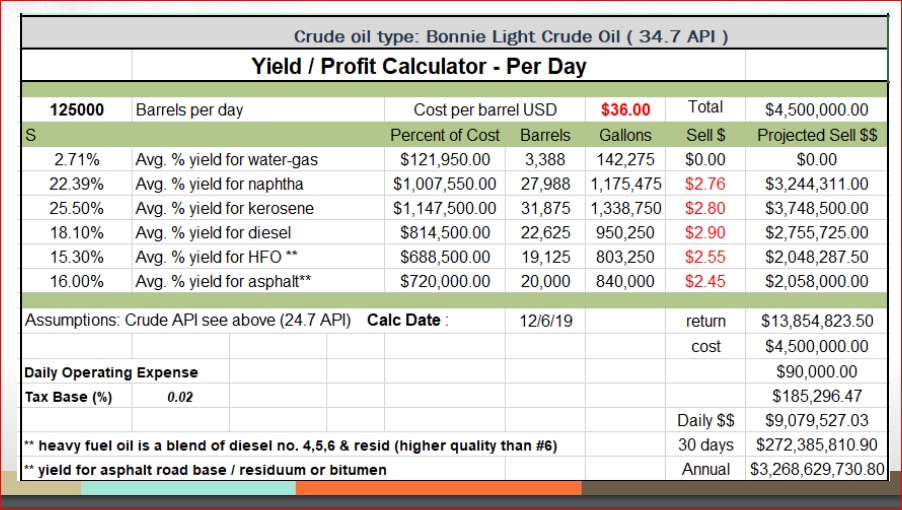

FINANCIAL CAPABILTY

MGOLDFHEZ Project

MGOLDFHEZ Facilities

5 Units x 30,000 bpd Modular Refineries including petrochemical processing plant, buildings, process and auxiliary services, services facilities and yard improvements, pipelines, etc.
3 Units x 5,000 bpd Floating Refineries
700,000 MT Capacity Tank Farm (140 MT per phase)4
300MW Natural Gas Processing Plant
Jetty (100m long)
5 Nos Coastal Oil & Compressed Gas Tankers
5 Nos. Mega Fuel Filling Stations
150 units x 33,000 liters capacity Road Tankers
200MW Solar and Gas Fired Power Plant
2 Nos. x 10 Storey Office-Residential Buildings

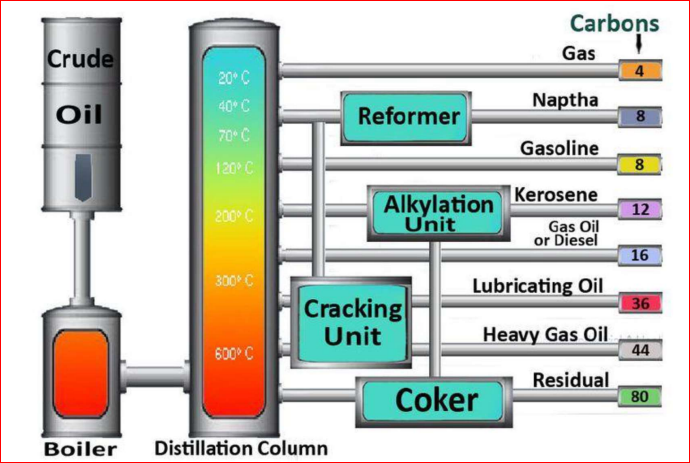

Schematic Diagram of a Petroleum Refinery

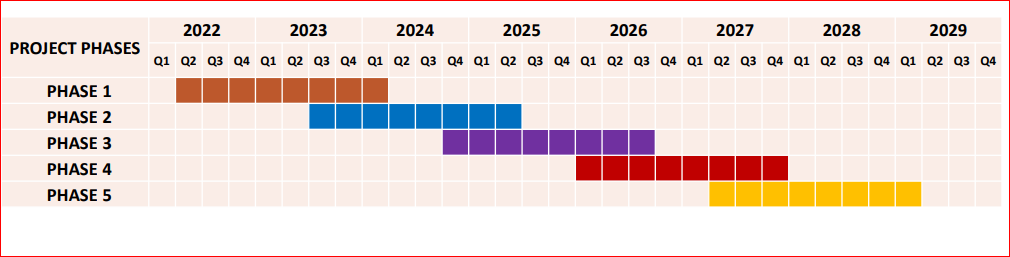

PROJECT DEVELOPMENT PLAN

DUE TO THE DEPARTMENT OF PETROLEUM (DPR) GUIDELINES IN THE ESTABLISHMENT OF MODULAR REFINERY PLANTS IN NIGERIA (MAXIMUM CAPACITY OF UP TO 30,000 BPD), THE PROJECT DEVELOPMENT IS GOING TO BE EXECUTED IN FIVE (5) PHASES FOR A TOTAL OF 150,000 BPD REFINERY CAPACITY.

PHASE 1

30,000 bpd Modular Refineries including petrochemical processing plant, buildings, process and auxiliary services, services facilities and yard improvements, pipelines, etc.
3 Units x 5,000 bpd Floating Refineries
140,000 MT Capacity Tank Farm
Jetty (100m long)
5 Nos Coastal Oil & Compressed Gas Tankers
5 Nos. Mega Fuel Filling Stations
50 units x 33,000 liters capacity Road Tankers
1 No. x 10 Storey Office-Residential Building

PHASE 2

30,000 bpd Modular Refineries including petrochemical processing plant, buildings, process and auxiliary services, services facilities and yard improvements, pipelines, etc.
140,000 MT Capacity Tank Farm
300MW Natural Gas Processing Plant
50 units x 33,000 liters capacity Road Tankers

PHASE 3

30,000 bpd Modular Refineries including petrochemical processing plant, buildings, process and auxiliary services, services facilities and yard improvements, pipelines, etc.
140,000 MT Capacity Tank Farm
50 units x 33,000 liters capacity Road Tankers
1 No. x 10 Storey Office-Residential Building

PHASE 4

30,000 bpd Modular Refineries including petrochemical processing plant, buildings, process and auxiliary services, services facilities and yard improvements, pipelines, etc.
140,000 MT Capacity Tank Farm
200MW Solar and Gas Fired Power Plant

PHASE 5

30,000 bpd Modular Refineries including petrochemical processing plant, buildings, process and auxiliary services, services facilities and yard improvements, pipelines, etc.
140,000 MT Capacity Tank Farm
